1 Product Overview

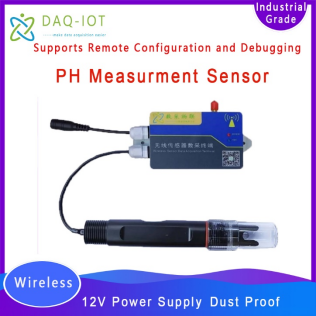

DAQ-GP-PH4G wireless PH sensor terminal is a universal wireless PH sensor based on 4G wireless transmission and DC wide voltage power supply launched by Shanghai Data Acquisition IOT Technology Co., LTD., which can collect pH data in the environment.

Wireless PH sensor terminals support 4G communication, which can greatly simplify field deployment time and reduce construction costs. Widely used in industry, agriculture and other pH measurement scenarios.

2 Service Concept

We solemnly promise that:

 What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

 This product, the site only ordinary workers connected to electricity installation! No debugging!

 We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.

Free Internet of Things solution consulting services!

3 Product Features

3.1 Acquisition Characteristics

l Temperature Range: -40°C~80°C

l Temperature Accuracy: ±0.5°C

l PH Range: 0~14PH

l Humidity Accuracy: ± 0.1PH

3.2 Electrical Character

l Power Supply: 12V DC

l Power Consumption: less than 5W

3.3 Communication Characteristics

Wireless Transmission Mode：GPRS4G/NB-IOT/LoRa/WiFi

Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized

Data Forwarding: any public network server

Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.

Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.

Registration Package: support custom registration package, can be set to IMEI code.

Positioning: Support LBS base station positioning to facilitate the query of device location.

3.4 Structural Property

Antenna Type: sucker or glue stick external antenna (Default built-in flexible FPC antenna)

l Material：ABS Plastic（enclosure）

l Main Protection Level：IP64

l Main Installation Method: magnetic, paste, screw fastening installation

3.5 Work Environment

l Temperature: -40°C～75°C，Humidity: 0～95%

4 Product Core Advantages

v Simple installation, fast deployment, help the Internet of things project quickly landing.

v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.

v Support any Internet of Things cloud platform and configuration software, and provide data protocol docking.

v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.

v Supports multiple external sensors.

v Non-invasive measurement, which does not affect the normal operation of the equipment.

v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.

5 Data Reporting Communication Protocol

5.1 Protocol Parsing Instructions

For UDP / TCP / MQTT / HTTP and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.

Example of JSON format:

{"T":27.8,"PH":67.1,"ID":"860344048491162"}

Message analysis:

{

"T": 32.1, //Temperature

"PH": .6.4, //PH value

"ID": "860344048491162" //Device ID

}

5.2 Protocol Acceptance Test

The network debugging assistant NetAssist can be used for reception testing.

5.3 Agreement Customization

If you need to customize other communication protocols, you can contact the business personnel to communicate them.本产品订单满2000元，免费定制通信协议。

6 Platform Docking

6.1 Default Platform

The product is connected to our designated industrial Internet of Things platform by default, and the platform interface is as follows:

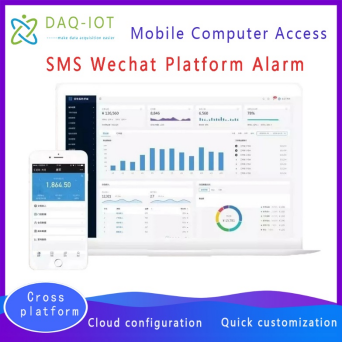

     Computer-side browser interface

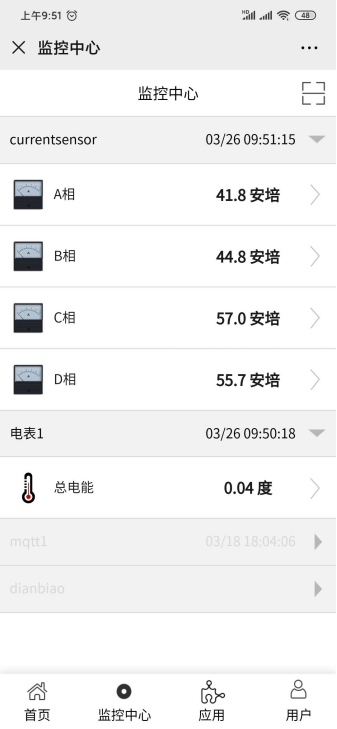

Mobile terminal WeChat access interface

6.2 The User Specifies the Platform

Take the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProductKey, DeviceName, DeviceSecret} and the MQTT theme to be released.

For example, the value of triples is:

ProductKey = b0FMK1Ga5cp

DeviceName = 862991419835241

DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q

Taking the OneNet platform as an example, after a user creates a product or adds a device on the OneNet platform, the user needs to provide the product ID and device registration code.

For example:

ID：332590

Registration code：DGRUa7Vr9KYGunwJ

7 Matters Needing Attention

1）When the device is installed inside the metal distribution box, use an external antenna and print the antenna outside the distribution box.

2）This product has a built-in SIM card, and the annual data fee is about 10~20 yuan according to the reported data frequency. You can also use your own SIM card, which needs to be confirmed in advance.
